Pyrolytic Boron Nitride PBN Products
Product Overview
Pyrolytic Boron Nitride (PBN) is fabricated by the well-known Chemical Vapor Deposition (CVD) process in which the ammonia gas (NH3) and a gaseous boron halide such as boron trichloride(BCI3) react in a high-temperature CVD furnace to deposit PBN on an appropriate substrate such as Pyrolytic Graphite.
PBN is known as an excellent choice for high-temperature furnace and electrical components, semiconductor, and microwave compound crystals such as germanium(Ge), gallium arsenide(GaAs), and indium phosphate(InP) owing to its intrinsic purity, superior mechanical properties, and physicochemical stability. PBN can withstand at 1800°C in vacuum and 2000°C in nitrogen, introducing it as a good choice for furnace components and melting vessels.

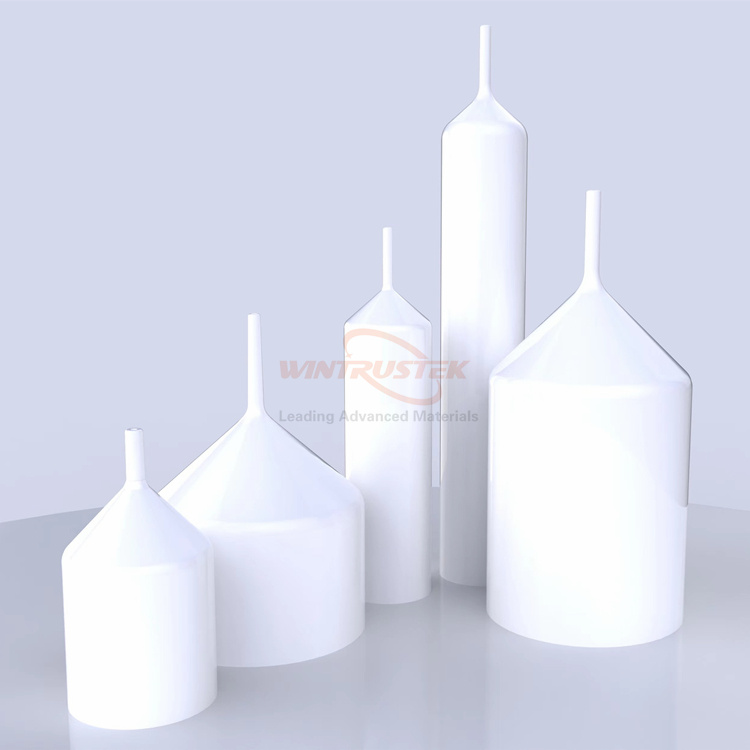

VGF crucible is a kind of vessel for the synthesis of crystals with vertical gradient freeze (VGF) technique, such as GaAs, InP, CZGaP, and Ge crystal.
Typical Properties
Layered structure with hexagonal crystal lattice
Special properties perpendicular to the basal plane of the crystal
Superior structural and physicochemical stability
Anisotropic structure
High thermal stability
Non-wetting
Non-toxic
Typical Applications
Crucibles for the growth of semiconductor crystals
Wave tubes for RF and microwave
Windows subjecting to microwave radiation
Electrical insulator

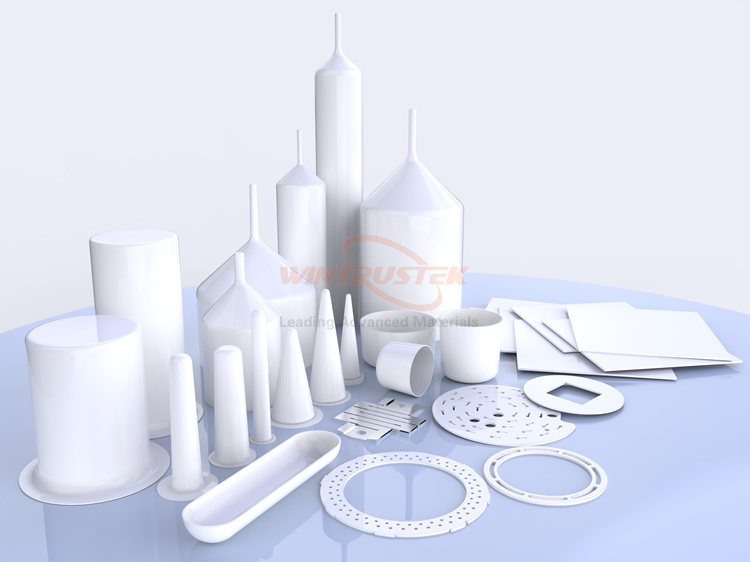

PBN Product Range
PBN with unique properties and high structural and physicochemical stability can be the best choice as:
PBN crucibles for the Vertical Gradient Freezing (VGF) process
PBN crucibles for the Liquid Encapsulation Czochralski (LEC) process
PBN containers for the Molecular Beam Epitaxy (MBE) process
PBN boats for compound semiconductors and alloy processing
PBN Metal-Organic CVD (MOCVD) insulation boards and MBE insulation rings
PBN electrical insulation bushings for high-temperature vacuum equipment
PBN traveling wave tube (TWT) with spiral structure
GDMS Analysis
Analytical Element | Result(μg/g) | Analytical Element | Result(μg/g) |
Li | <0.005 | Si | 1.7 |
F | <0.005 | CI | <0.005 |
Na | <0.005 | S | <0.005 |
Packaging & Shipping
