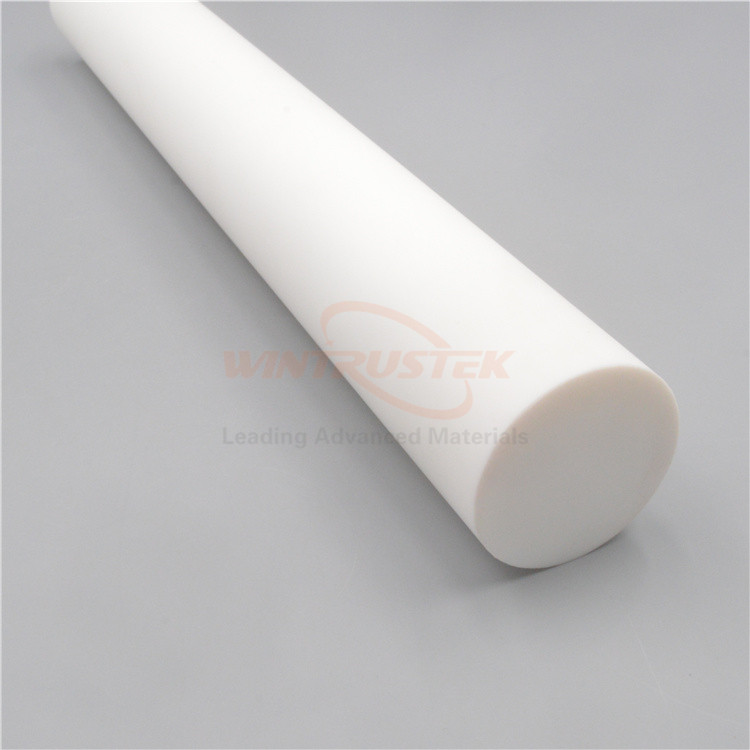

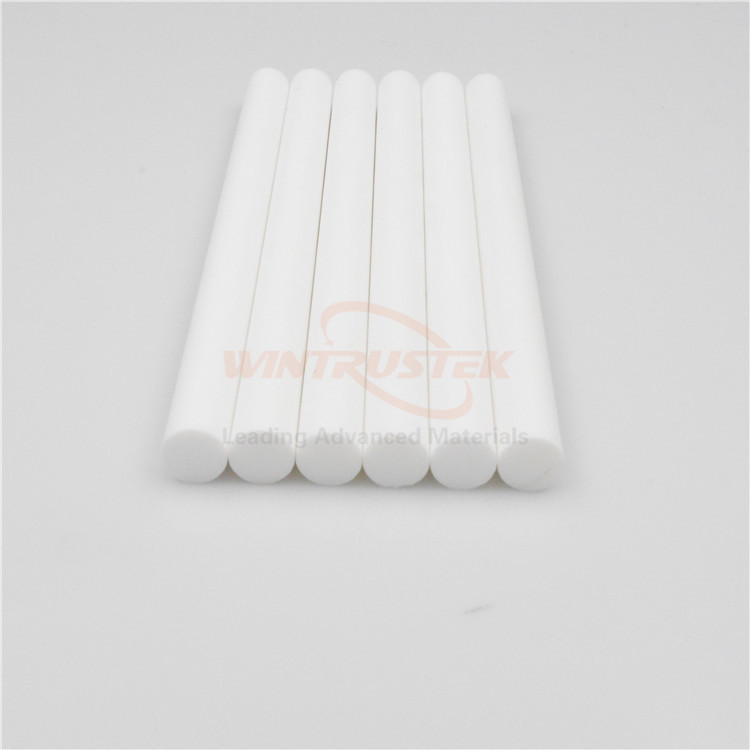

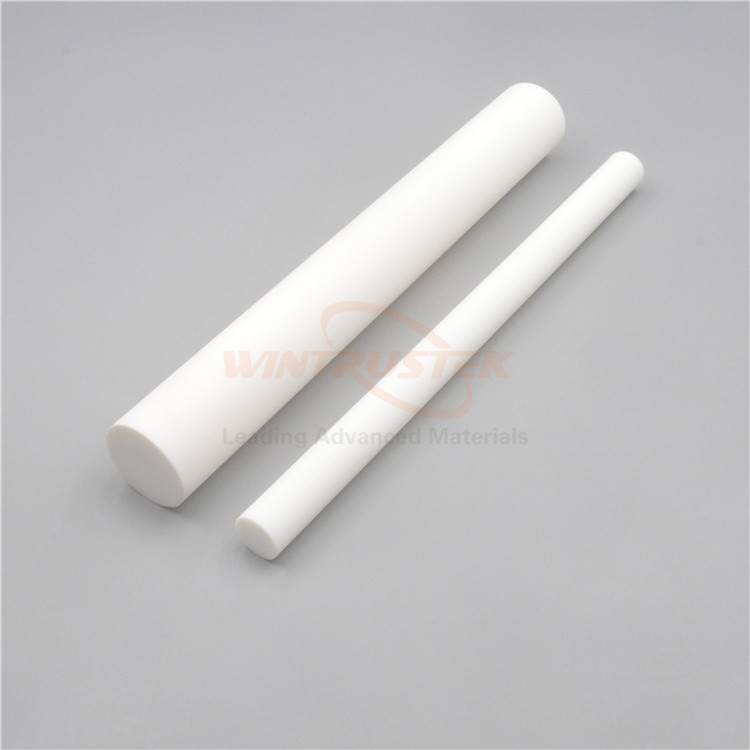

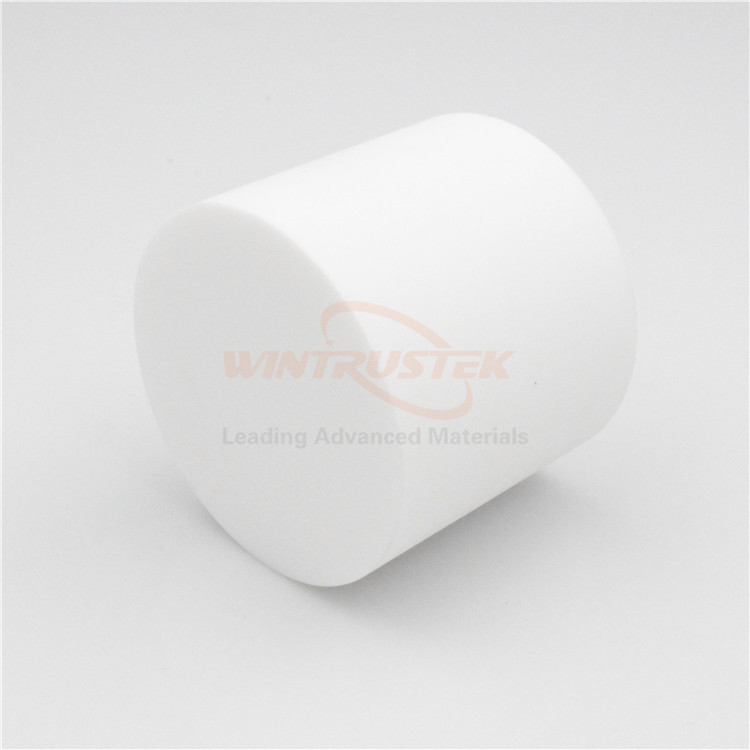

Easily Machinable Glass Ceramic Bar

Density: 2.6g/cm³
Thermal Conductivity: 1.68 W/m.K
Dielectric Strength: >40 KV/mm
Easily Machinable

PRODUCT DETAIL

Material Overview

A machinable glass ceramic material with exceptional engineering qualities is called Macor. Unlike other ceramic materials, Macor can be machined using standard metalworking tools. This problem-solving substance blends the technical ceramic's efficiency with the high-performance plastic's adaptability. Macor has no pores and won't outgas when baked out properly. Unlike high temperature polymers, it is tough and rigid and won't creep or deform. Radiation resistance also applies to Macor machinable glass ceramic.

According to your specifications, we provide Macor Rods, Macor Plates, and Macor Components.

Typical Features

Can be machined using standard metalworking equipment.

Low thermal conductivity

Excellent electric insulator for high voltages

Continuous working temperature of 800 C and peak temperature of 1000 C

Zero porosity

Won't cause outgassing in vacuum environment

Very tight machining tolerances

Outstanding dimensional stability

Applications

Electrical spacers in vacuum systems

Thermal insulators in heated or cooled assemblies

High intensity lamp reflectors

Laser cavity components

Coil supports

High voltage electrical insulators

Wintrustek Advanced Materials is a leading ceramic materials supplier. We provide high-quality Macor Machinable Glass Ceramics at a competitive price.

More Materials

Our Advanced Ceramics include:

Alumina (Al2O3) Ceramics

Zirconia (ZrO2) Ceramics

Beryllia (BeO) Ceramics

Aluminum Nitride (AlN) Ceramics

Silicon Nitride (Si3N4) Ceramics

Hot Pressed Boron Nitride (HBN) Ceramics

Pyrolytic Boron Nitride (PBN) Ceramics

Silicon Carbide (SiC) Ceramics

Boron Carbide (B4C) Ceramics

Titanium Diboride (TiB2) Ceramics
